45° Staggered Centers

Round Hole PATTERNS

An alternate to the traditional 60 degree staggered centers patterns. 45 degree patterns are an option for those looking for something different.

45° STAGGERED ROUND

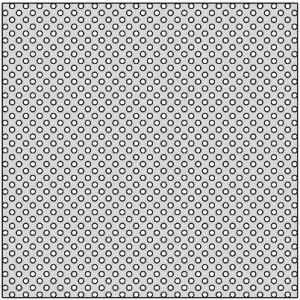

.027 X .044 (.686mm x 1.118mm)

.027 X .044
HPSI: 1033
%OA: 59.1
Max perf width: 24″

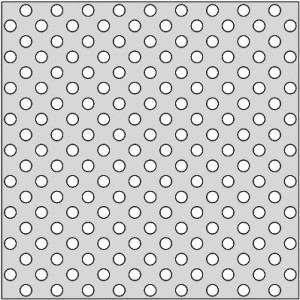

.059 X .111 (1.499mm x 2.819mm)

.059 X .111
HPSI: 162.4
%OA: 44.4
Max perf width: 60″

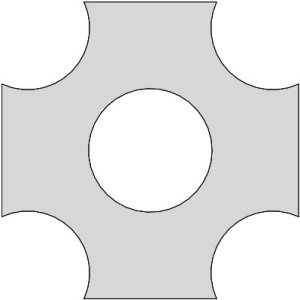

.625 X .875 (15.875mm x 22.225mm)

0.625 X 0.875
HPSI: 2.6
%OA: 80.1
Max perf width: 72″
